Set up a Brother printer for an iPad using an IP address

Learn how to configure the Brother QL series printer using the manual IP address when printing badge passes from an iPad. You must have the Administrator user role to access these settings.

About iPad printing

There are three options to print from an iPad. They all require a Brother QL-720NW, QL-810W, QL-820NWB or QL-820NWBc printer:

AirPrint This mode allows you to select a printer on the same network as your iPad by choosing from a list of AirPrint-compatible printers. Go to the kiosk settings screen on your iPad kiosk to select a printer.
Bluetooth This mode allows you to select a printer connected to your iPad via Bluetooth by selecting from a list of connected printers. Go to the kiosk settings screen on your iPad kiosk to select a printer. This option is only available using the Brother QL-820NWB or QL-820NWBc printer and specified labels.
Manual IP address

If your network does not support AirPrint, you may need to enter your printer settings manually. Confirm that the settings are correct by selecting the Print Test Label button from your iPad kiosk settings screen.

Printing via the IP address can be used when the printer cannot be found in the iPad kiosk. This can be caused by limitations imposed on your wireless network connection.

Step 1: Find your printer's IP address

To set up printing, you must get the printer's IP address and add it to the kiosk settings in OnLocation.

If your IP address starts with 169.254, the printer couldn't connect to provide a working IP address. You will need to reconnect the printer to your computer to install it on the network.

Brother QL-720NW, QL-810W and QL-820NWBc

On your printer:

  1. Press and hold the cut button until labels begin printing. Five labels will be printed out; the first three will be blank and can be discarded.
  2. On the fourth label, find the IP address line. It will be a series of numbers separated by periods (for example 192.168.1.44 or 10.0.1.23). You will need to enter this into your kiosk settings.

Brother QL-820NWB and QL-820NWBc

On your printer:

  1. Press Menu on the printer.
  2. Go to WLAN and press OK.
  3. Go to WLAN Status and press OK.
  4. Select your connection type and press OK.

The IP address is listed under IP Address.



Step 2: Update the kiosk settings

Now that you have your printer's IP address, enter this in the kiosk settings in OnLocation:

  1. Go to Locations, then select the location from the drop-down list.
  2. Select Sign In/Out Kiosks.
  3. Click View next to your kiosk.

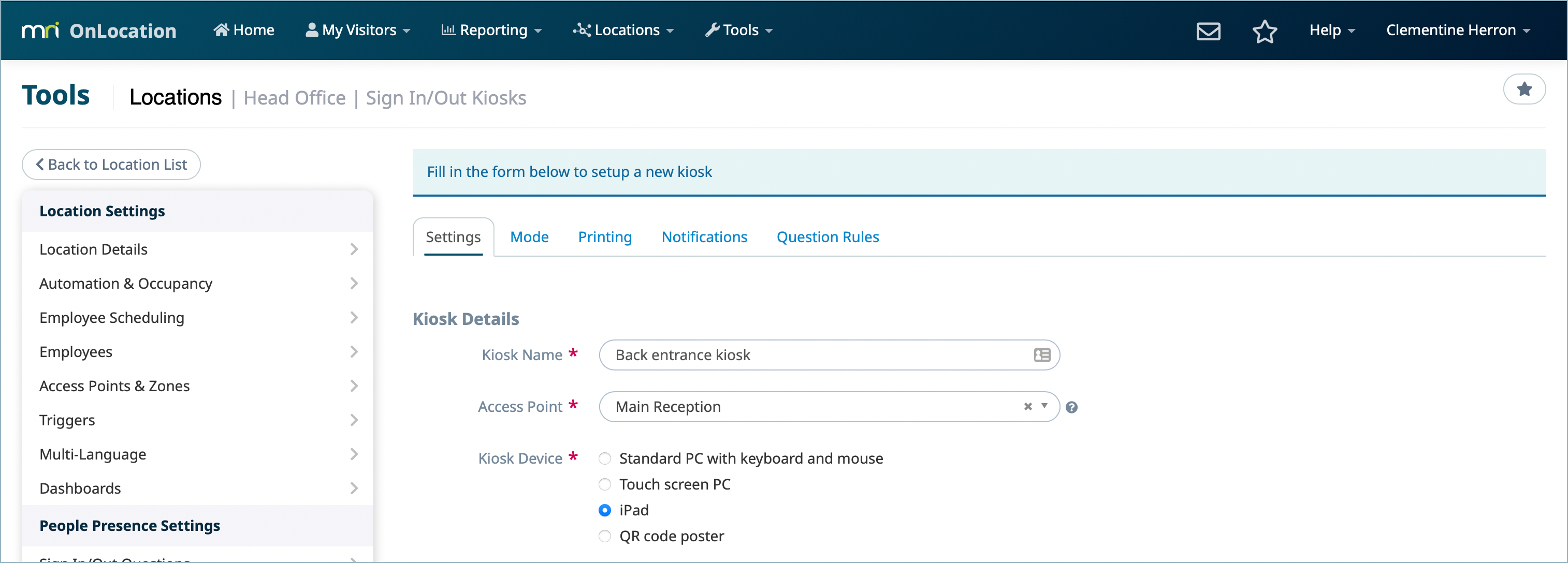

  4. In the Settings tab, check that the iPad is selected as the kiosk device. If not, change the device type.

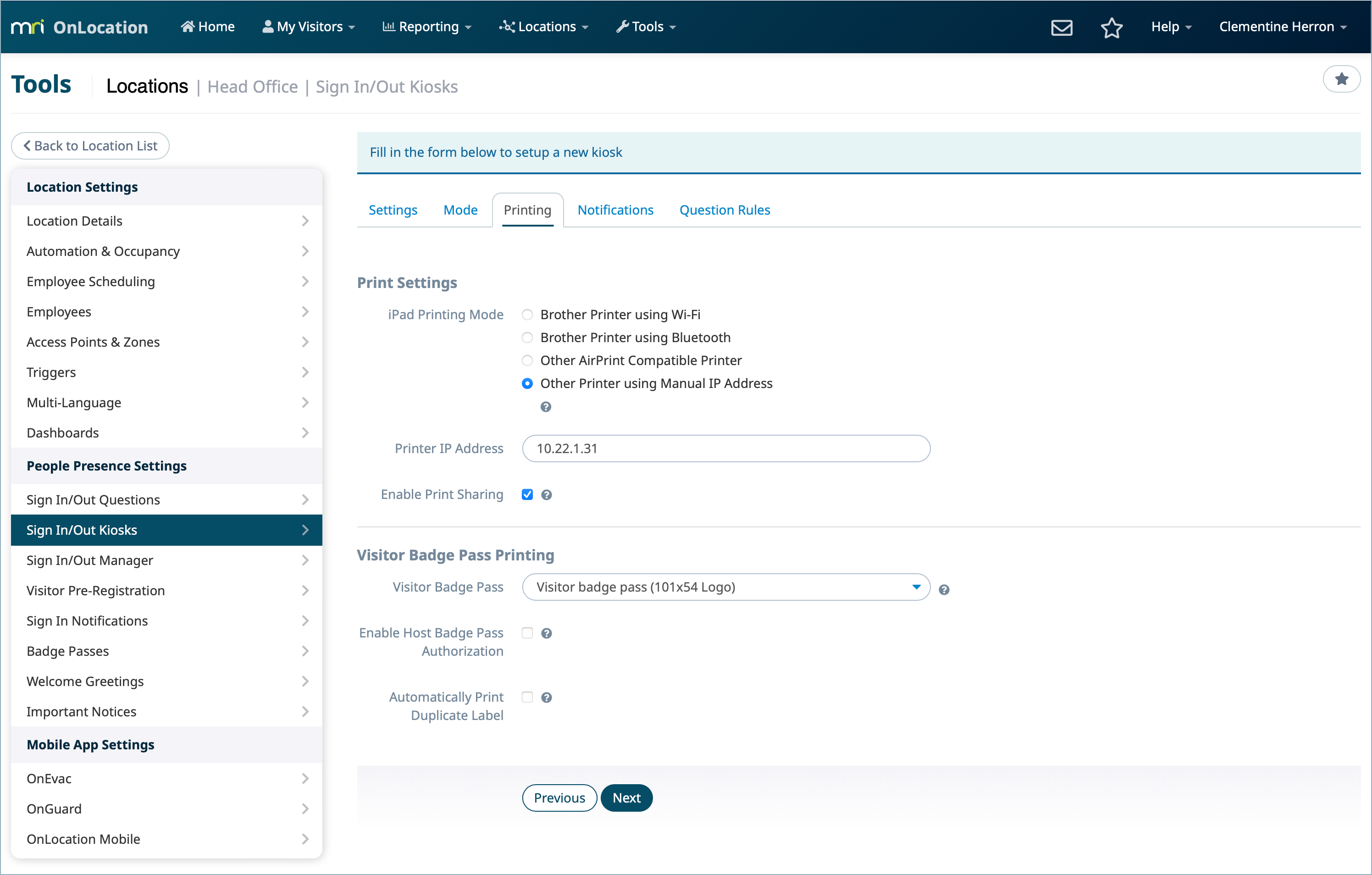

  5. Select the Printing tab.
  6. Select Other Printer using Manual IP Address
  7. Enter the printer's IP address.
  8. Click Save and Close.


When you open OnLocation Kiosk on your iPad, the app will automatically connect to your Brother printer using its IP address.
